Concrete Mixers

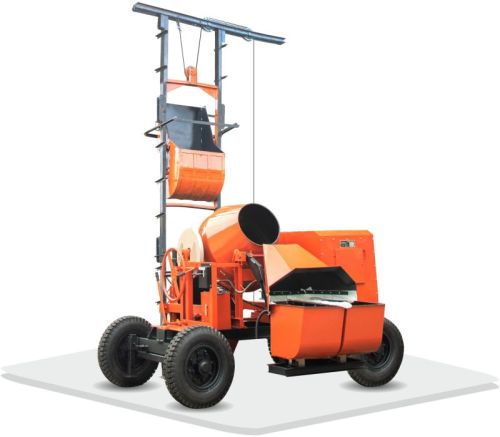

Leading Manufacturers, Exporters and Wholesaler of HYDRAULIC MIXER CUM HOIST, Hand Feed Concrete Mixers, Energy Efficient Concrete Mixers, Hydraulic Hopper Concrete Mixers, Mixer Cum Hoist Concrete Mixers and Reversible Drum Concrete Mixers from Vadodara.
| Business Type | Manufacturer, Exporter, Supplier |
| Type Of The Drum Mixer | Tilting Drum Mixer |
| I Deal In | New Only |
| Country of Origin | India |
| Warranty | 1year |
| Type | Concrete Mixers |
| Application | Concrete Mixing |
| Automatic Type | Semi Automatic |
| Power Source | Diesel |
| Brand Name | ESQUIRE MACHINES |
| Condition | New |
Preferred Buyer From
| Location | Worldwide |
FEATURES
• Two-in-one combination with mixer & lifting winch.
• Cost effective & Reliable.
• Esay installation, operations & shifting.
• Operated by single operator.
• Positive displacement hydraulic system.
• Reduced Maintenance Expenses & Increased Reliability.
• Tower structure :2 Pole C channel.
OPTIONAL
• Digital Weighing System : with Printing facility & USB port
• 2 Bin Hopper
• Prime mover : Diesel engine or Electric motor.
• Towing Speed 15 km/hr.
TOWING SPEED (MAX) 05 KM/HR
BREAKING SYSTEM HAND OPERATED FRICTIONAL BREAKER
SAFETY FEATURE RATCHET-PAWL MECHANISM LOCKING BRAKE
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 760 Kg |
| Brand Name | ESQUIRE MACHINES |
| Driven Type | Pneumatic |
| Condition | New |
| Capacity (Unmixed) | 200 Ltr |
| Capacity (Mixed) | 150 Ltr |
| Water Volume | 280 Ltr |
| Power (Diesel Engine) | 6 HP |
| Power (Electric Motor) | 5 HP |
| Drum Bottom Dish | Cast Iron |
| Drum Cone (MS) | 3.5 mm |
| Production Rate | 1.8 CuM/Hr |
Preferred Buyer From
| Location | Worldwide |
Features :
- Built to Last, Robust Design.
- Easy to operate & maintain.
- Casted Drum - Less Wear & Tear.
- Wear Resistant Bearing, Reduced power loss and increased Reliability.
- Sturdy Base Frame for stability & longer life.
- Easy to Transport.
- WHEELS: Pneumatic or MS Wheels with towing bar.
- Prime Mover Electric Motor or Diesel Engine
Optional :
- Dual Drives : Electric Motor & Diesel Engine on the same chassis. Easy Interchangeability of Power Source.
- Industrial Application : Machine Mounted on Foundation for Special / Industrial Applications.
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 600 Kg |
| Brand Name | ESQUIRE MACHINES |
| Condition | New |
| Capacity (Unmixed) | 300 Ltr |
| Capacity (Mixed) | 200 Ltr |
| Water Volume | 350 Ltr |
| Power (Diesel Engine) | 6 HP |
| Power (Electric Motor) | 5 HP |
| Transmission | Roller Chain Drive |
| Drum Cone & Base | Fabricated with Bevel Gear Ring |
| Production Rate | 4-5 CuM/Hr |
Preferred Buyer From
| Location | Worldwide |
Features :
- Light weight steel structure with built in Reliability.
- Drum tilting control.
- Reduce power consumption & Increase in Fuel Saving.
- 4 to 6 mm fabricated drum.
- Easy tilting of the drum through a large geared hand wheel.
- Easy to tow.
- 360 degree swivel for easy & complete discharge.
- WHEELS: Pneumatic or MS Wheels
- Prime Mover Electric Motor or Diesel Engine.
Optional :
- Single Phase : Available with phase converter in Electric model.
- Industrial Application : Machine Mounted on Foundation for Special/ Industrial Applications.
- Stainless Steel Drum
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ESQUIRE MACHINES |
| Condition | New |
| Capacity (Unmixed) | 300 Ltr |
| Capacity (Mixed) | 200 Ltr |
| Water Volume | 500 Ltrs |
| Power (Diesel Engine) | 6 HP |
| Power (Electric Motor) | 5 HP |
| Drum Base | Cast Iron/MS |
| Drum Cone | MS, 3.15 mm Thick |
| No of Bins | 1 or 2 |
| Production Rate | 6 - 8 CuM/Hr |
Preferred Buyer From
| Location | Worldwide |
Features :
- Rugged & Reliable Design Principles.
- Built in Reliability.
- Hydraulic pump directly mounted on prime mover.
- No misalignment and power Loss.
- Pin Type Jacks for stability during operations.
- Easy to transport.
- WHEELS: Pneumatic / MS Wheels with towing bar.
- Prime Mover Electric Motor or Diesel Engine.
Optional :
- Dual Drives: Electric Motor & Diesel Engine on the same chassis.
- Easy Interchangeability of Power Source.
- Digital Weighing System: Load Cell based, with/without Print Facility Monitor & 2 Bin Hopper.
- Water Tank: Calibrated Water Tank - 40 Ltrs.Water Dispenser System with Hydraulic pump.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ESQUIRE MACHINES |
| Condition | New |
| Mixer Unmixed Capacity | 300 Ltr |
| Mixer mixed Capacity | 200 Ltr |
| Winch Height | 10Mtr. / 15Mtr. / 20Mtr. |
| Feeding Hopper | Mechanical Operated |
| Winch | Mechanical winch with Brake |
| Output /Hour | 5 to 6 cu.mt/hr (25 to 30 batches/hr) |
| Mixing Drum Speed | 22-24 RPM |
| Mixing Lifting Capacity | 450 Kg Net/200 Ltr |
| Material Discharge Height | 18 Mtr Maximum (60Feet) |
| Bucket Lifting and Downward Speed | 30 Mtr/Min |
| Wire Rope Dia | 10 mm |
| Prime Mover | 10 HP Diesel Engine |
| Towing Speed (Max.) | 05 Km/Hr |
| Safety Feature | Winch with Mechanical Braking |
| Overall Length | 2.8 Mtr (Without Drawbar) |
| Overall Width | 2.1 Mtr |
| Overall Mixer | M/C Height 2.7 Mtr |
Preferred Buyer From
| Location | Worldwide |
Features :
- Two-In-One combination with mixer & lifting winch.
- Cost Effective & Reliable.
- Easy Installation, Operation & Shifting.
- One operator is sufficient to operate mixer as well as hoist.
- Positive Displacement Hydraulic system.
- Reduced Maintenance Expenses & Increased Reliability.
- Prime Mover Electric Motor or Diesel Engine
Optional :
- Digital Weighing System: Load Cell based, with / without Print Facility Monitor & 2 Bin Hopper.
- Hopper: Mechanically Operated Hopper.
- Mounting: Scaffolding /Wall Tie.
- Tower Structure: Pole / Channel /1.5 Mtrs.Tower.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ESQUIRE MACHINES |
| Condition | New |
| Capacity (Unmixed) | 600 Ltrs |
| Capacity (Mixed) | 400 Ltrs |
| Power (Diesel Engine) | 12.0 HP |
| Power (Electric Motor) | 12.5 HP |
| No of Bins | 1,2,3 or 4 |
| Water tank | 120 Ltrs |
| Drum Speed | 12-13 RPM |
| Discharge Height | 1440 mm |
| Drum Shell Thickness | 6 mm |
| Drum Cone Thickness | 4 mm |
| Production Rate | 8-10 CuM/Hr |
Preferred Buyer From
| Location | Worldwide |
Features :
- Sturdy & Robust Chassis.
- Positive Hydraulic Transmission with Built in Reliability.
- by stick type Hydraulic control operation.
- Four Jack for better Stability.
- Easy Transportation with Pneumatic wheel.
- Calibrated Water Tank which is filled by hydraulically or electrically operated water pump.
- Electronic weighing system with Digital display.
- Positive drive for the drum - Increased efficiency
- Prime Mover Electric Motor or Diesel Engine.
Optional :
- Dual Drives: Electric Motor & Diesel Engine on the same chassis.
- Vibrator on Hopper with Electrical Prime Mover.
- Digital Monitor with USB Port & Printing Facility.
- Programmable Water Dispenser System.
- SCADA System.
- Stainless Steel Drum.
